This luxury villa in Dubai is a harmonious project of architectural elegance and modern design sensibility. It is an exemplary showcase of how material sophistication and structural finesse come together to deliver a timeless residential design.

The project covers the exterior envelope and the comprehensive fit-out, emphasizing aesthetics, structural finesse, and unique detailing throughout.

Location and Project Scope

Situated in one of Dubai’s most sought-after residential zones, the villa spans two levels and have an architectural structure driven by sharp geometry, minimalist lines, and luxury finishes. The scope of work covers:

Full exterior façade execution

Structural elements including balconies and overhangs

Curtain wall installation with custom window framing

Precision engineering of staircase formwork

External and internal cladding and wood finishes

Balustrade systems with tempered glass and steel

Structural scaffolding for suspended access

Full architectural fit-out and integration with MEP

Exterior Architectural Design

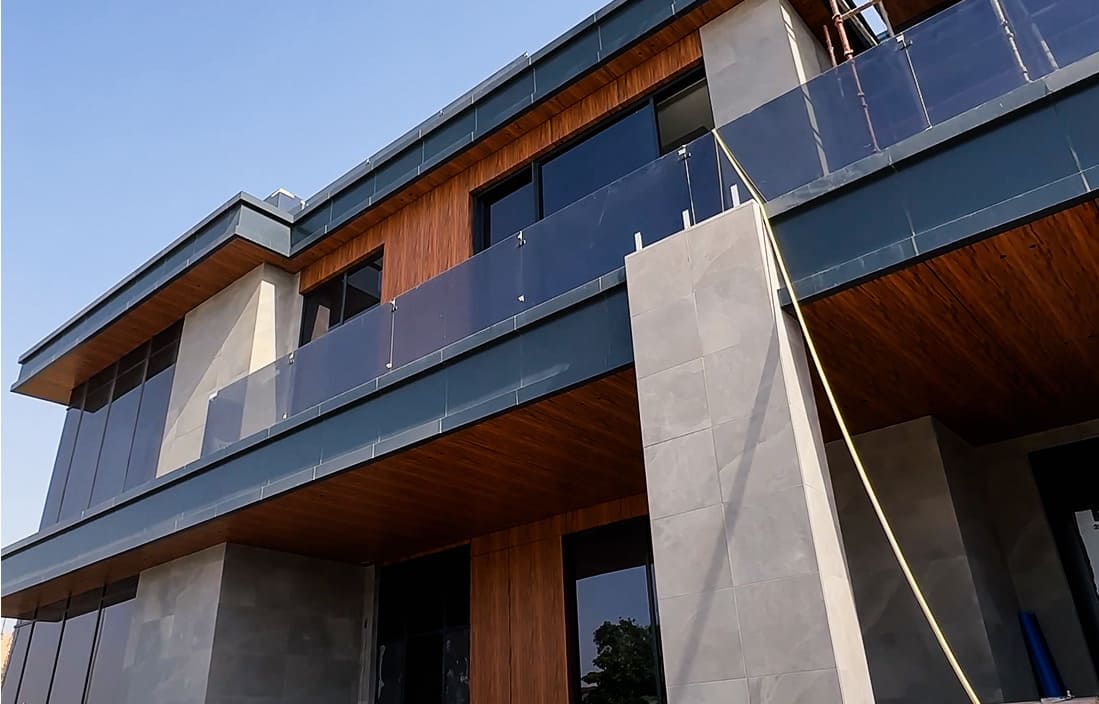

Façade and Material Palette

The façade composition showcases a commanding interplay between three primary materials: natural stone slabs, rich wood veneer paneling, and black aluminum framing. These elements are arranged in horizontal and vertical planes to enhance the villa’s architectural design work.

Stone Cladding: Large-format natural gray tiles are employed on structural columns and the lower façade, emphasizing permanence and durability. The clean, matte finish of the stone provides a neutral base that contrasts elegantly with the wood tones.

Wood Cladding: Engineered wood panels with a warm walnut grain are applied strategically across vertical walls and horizontal soffits. This material brings a sense of warmth and comfort to the otherwise contemporary shell.

Aluminum Framing: Powder-coated aluminum trims in dark graphite frame the balconies and rooflines, adding visual sharpness and accentuating the structure’s linear composition.

This trio of materials results in a contemporary yet welcoming exterior, displays regional modernism with a touch of Scandinavian minimalism.

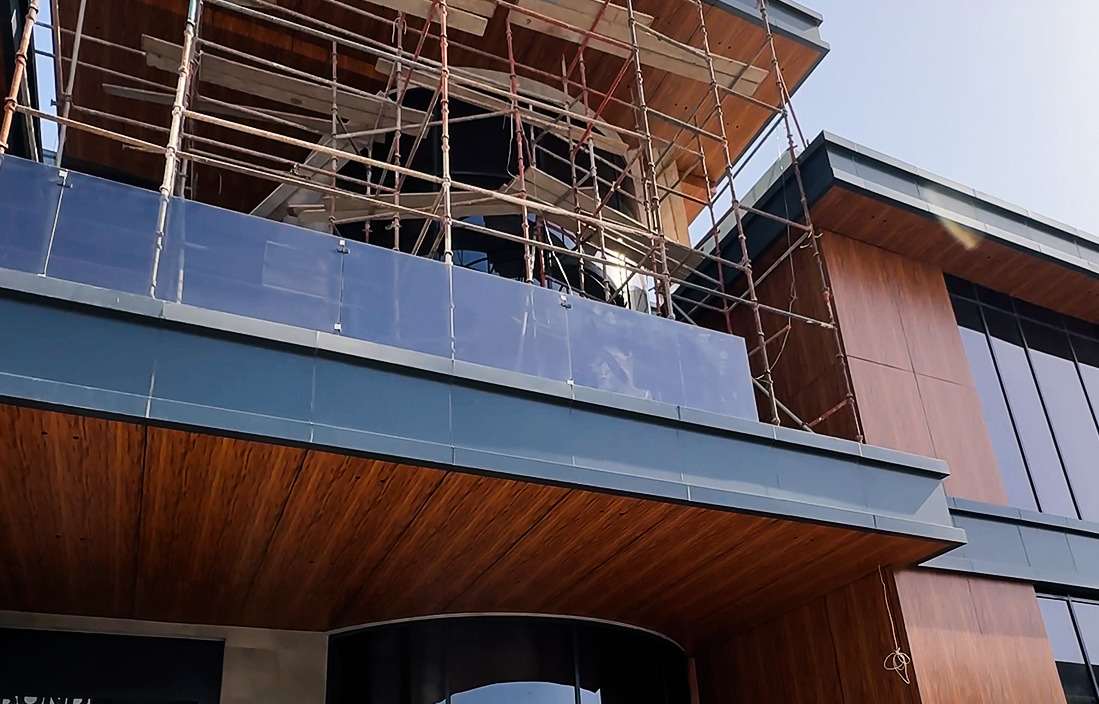

Balconies and Glass Balustrades

The first-floor balconies are lined with frameless glass balustrades, offering uninterrupted views and maximum transparency. These are supported by stainless steel connectors fixed into the edge beams, maintaining the structure’s clean edge lines.

The glass is tempered and laminated, ensuring both safety and wind-load resistance. The joints between panels are nearly invisible, enhancing the floating appearance of the upper volume. From the exterior, this element visually lightens the bulk of the architecture, giving it a hovering sensation above the solid base.

Entrance and Canopy Details

The entrance canopy features an extended overhang with concealed lighting provisions. The soffit cladding in real-wood veneer is laid in linear patterns, creating a visual flow from the outer edge toward the front door.

The main entrance is double-height, signifying grandeur. Above it, a circular void supported by scaffolding highlights an in-progress installation of a custom chandelier or feature light. This feature is likely to become the architectural focal point of the villa’s main entry hall, visible from both exterior and interior vantage points.

Fenestration and Curtain Wall Detailing

The villa features floor-to-ceiling curtain wall glazing with dark-tinted, UV-coated glass. These windows are precisely inserted into the structure with concealed drainage systems and seamless thermal break frames. This glazing strategy ensures:

Ample natural light intake

Thermal comfort across seasons

Noise insulation

Elegant internal-external continuity

Staircase Construction and Engineering

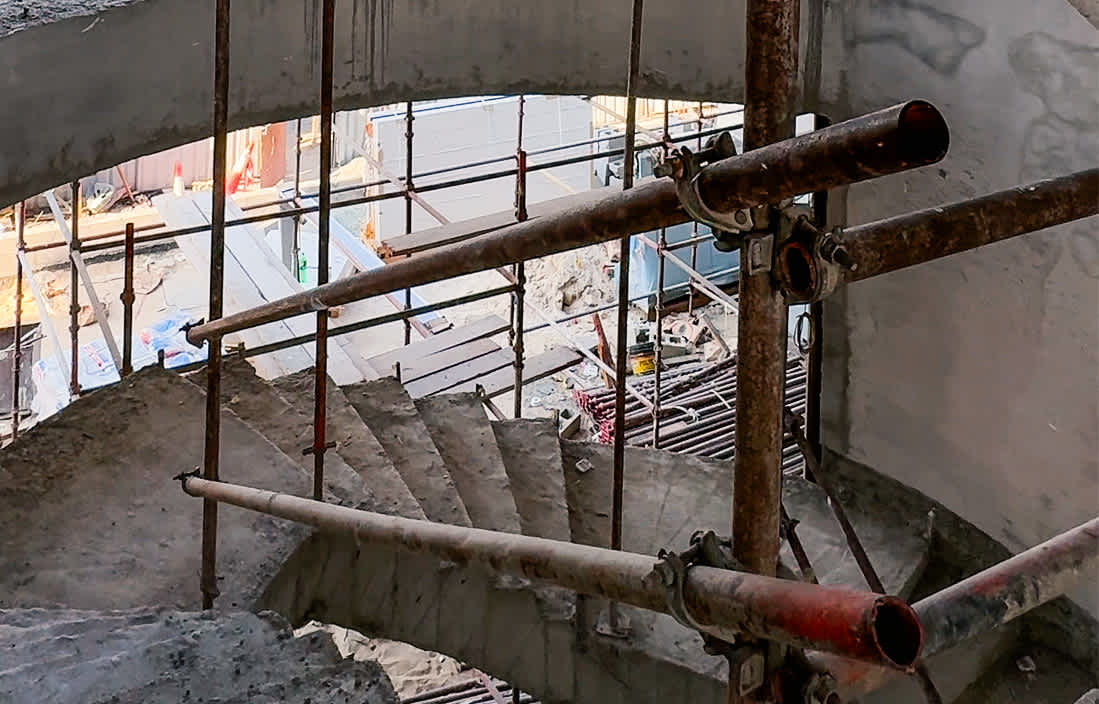

Helical Staircase Design

A standout element of the villa’s fit-out is its curved helical staircase, currently under construction. Executed in reinforced concrete, the staircase wraps elegantly within a double-height void. Reinforced scaffolding is installed both below and around the form to provide support during the curing process and for safety during high-access work.

The helical form was achieved using custom plywood shuttering and precision bending of rebar. Once completed, the staircase will likely be clad in stone or wood with concealed lighting along the underside of the treads, offering a dramatic ascent experience.

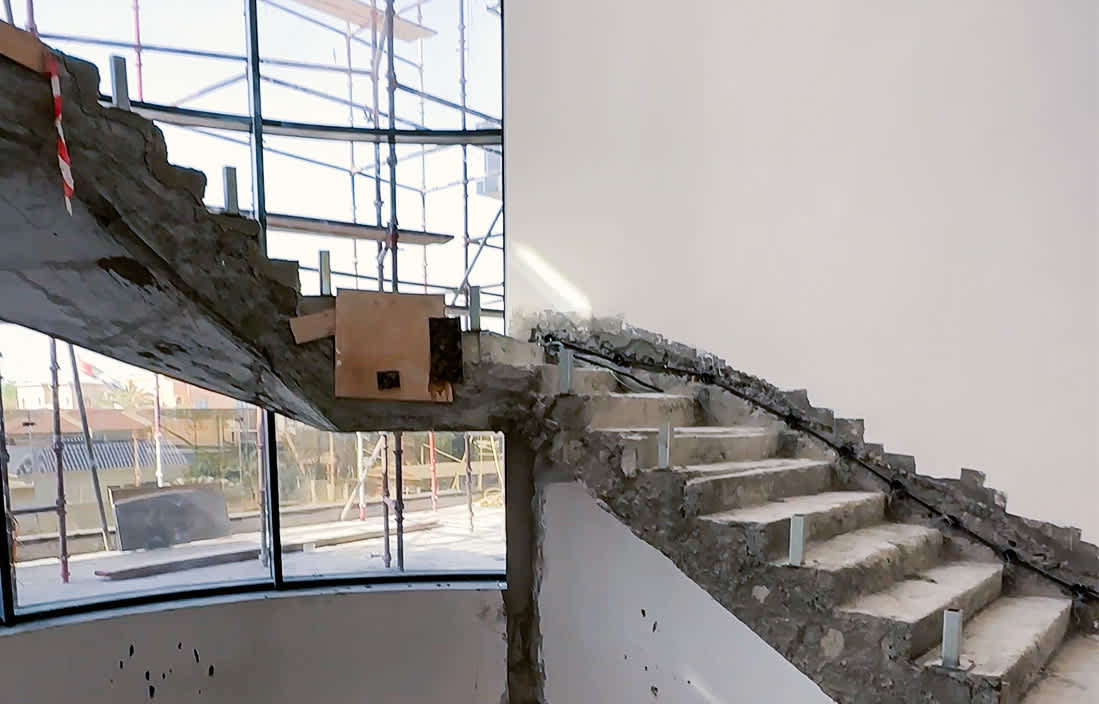

Linear Staircase Element

Adjacent to the curved stair is a second angular staircase, fabricated from cast-in-place concrete with bracket provisions for tread cladding. The stair spans across a floor-to-ceiling curtain wall, creating a stunning vertical circulation path with views toward the outdoor space.

The stair stringers are deliberately left exposed during construction for inspection and finish application, and electrical conduits are integrated for indirect stair lighting.

For more premium interior and exterior fit-out case studies, visit our Fit-Out Projects Portfolio.

Scaffolding and Safety Structures

All elevation work is currently facilitated through a well-constructed scaffold network. Vertical and horizontal scaffolding frames envelop key sections, especially around the front dome feature and the staircase void.

Wood Soffits and Ceiling Detailing

The underbelly of the balconies and roof overhangs are lined with custom-cut wood slats, finished with weatherproof sealants. These soffits visually tie together various elevations, softening the massing and enhancing textural variation.

The wood adds warmth and acoustic benefit, and its rhythm mirrors the clean lines of the façade. This detailing will be crucial once night-time lighting is integrated, highlighting the richness of the grain and reflecting warm ambient light downward onto the façade.

Structural Columns and Supports

Prominent vertical columns are clad with large-format sandstone-effect tiles, emphasizing strength and sculptural form.

The junctions between column cladding and slab lines are finished cleanly, indicating high precision in material cutting and alignment.

Lighting and MEP Integration (In Progress)

Pre-installed MEP conduits are visible throughout, particularly around staircases and canopies. The project has allocated sufficient provisions for:

Recessed ceiling lighting

LED strip lights in stair treads

Uplighting along façade lines

Smart home automation conduits

This ensures that post-construction, the villa will seamlessly integrate ambient, task, and accent lighting without visible cable runs or retrofitting.

Project Status and Delivery

As observed, the villa is in an advanced stage of structural completion, with exterior finishes largely in place. Fit-out activities are in progress, focusing on:

Internal finishing

Stair detailing

Feature lighting

Balustrade completion

Landscaping

The project is on track for completion within the stipulated timeline and is expected to be handed over as a turnkey luxury residence, ready for high-end interior furnishing.

Conclusion

This villa project in Dubai showcases the finest details of architectural execution, materials engineering, and contemporary design.

The balance of solid and transparent elements, the sculptural geometry of the staircases, the interplay of wood and stone, and the seamless integration of services—all contribute to a property that is both architecturally ambitious and luxuriously livable. The project is a new and unique level for luxury residential construction in the region.
